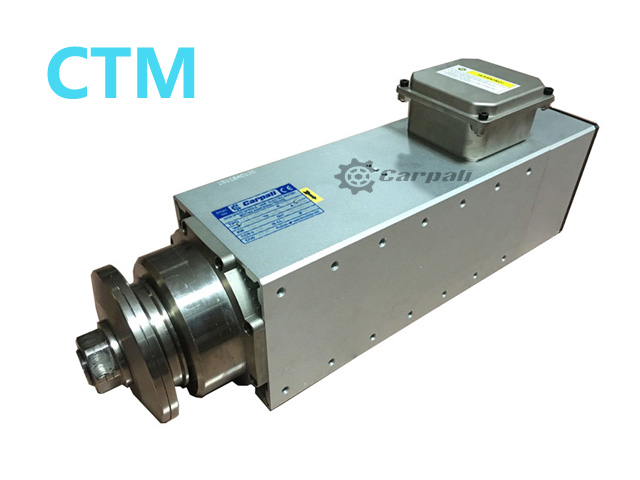

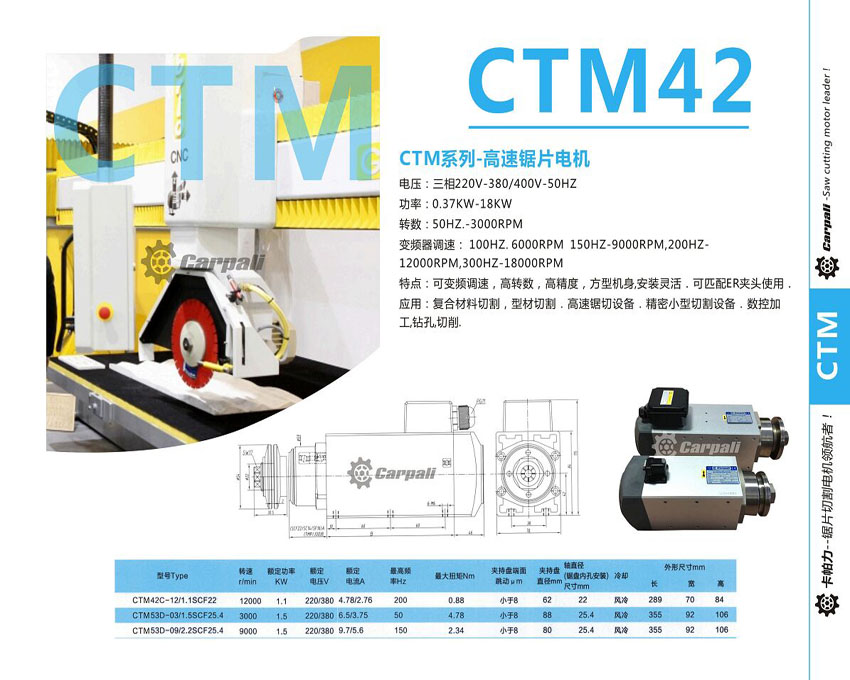

CTM-high-speed precision blade motor performance parameters:

1. Voltage: three-phase 220V-380 / 400V-50HZ

2. Power: 0.37KW-18KW

3. Revolutions: 50HZ.-3000RPM

4. Inverter speed: 100HZ. 6000RPM 150HZ-9000RPM, 200HZ-12000RPM, 300HZ-18000RPM

CTM-high-speed precision blade motor Features:

1. Frequency control, high speed, high precision.

2. Square body, flexible installation.

3. Can be used to match the ER chuck.

CTM-high-speed precision blade motor applications: composite sheet metal cutting, metal profile cutting, high-speed sawing equipment, precision small cutting equipment, CNC machining, drilling equipment, cutting equipment．

For details, see Download CenterOr contact us!
