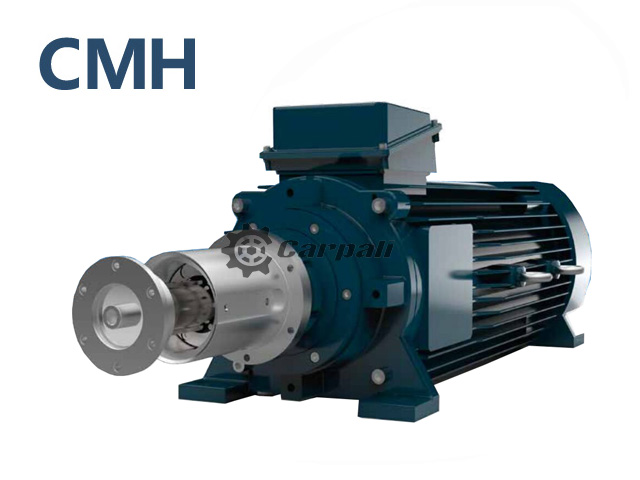

CMH heavy cutting motor, high-power saw blade cutting motor, stone cutting motor

Product Specifications:

1. Shaft height: 75 to 190 mm.

2. Power: up to 132 kilowatts.

3 speed range: 2P, 4P, 6P. S1. Cooling: IC 411 (self-ventilated). Voltage: 400 V / 50 Hz

4. Insulation class: F Installation: IM B35 Degree of protection: IP 55 IP65

5. Ambient temperature: 20 to 40 ° C Standard Design Detail The shaft end is balanced by the C-45 half-key

6. Aluminum or cast iron motor housing material, cast iron or steel bearing shields, electrically insulating bearings

7. Lifetime lubrication of rolling bearings, electrical design options intermittent operation of the rated power increase efficiency level IE 2, IE 3

8. Frequency converter operation optimized with external fan

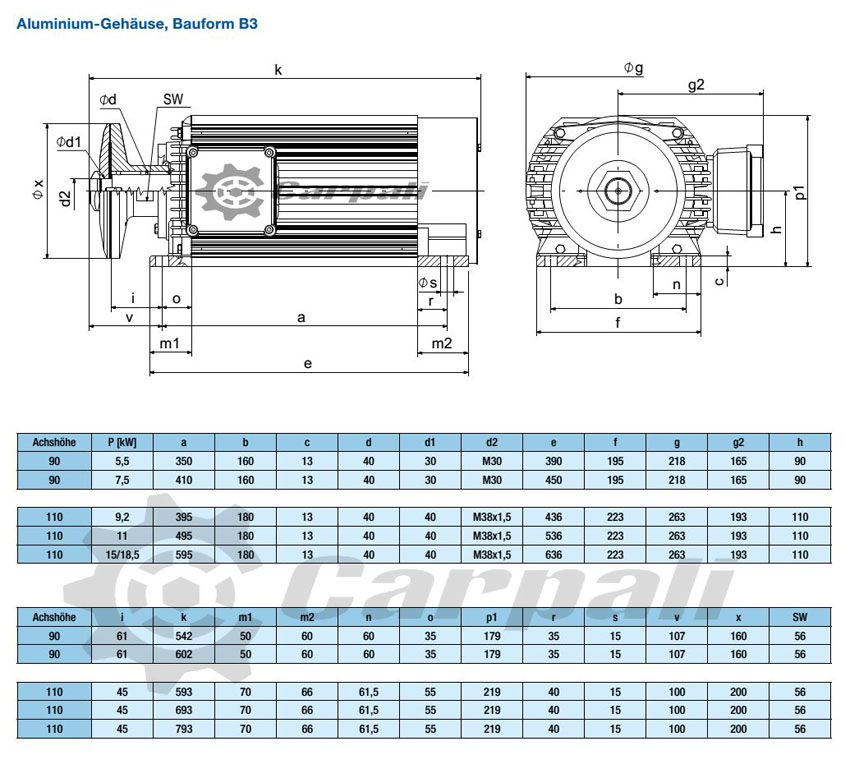

9. Dimension 2, 4 or 6 pole motor, pole motor 4/2 or 8/4 - pole, special voltage and frequency, Class H insulation

Higher ambient temperature and installation height, the winding temperature monitoring by the thermal switch, PTC resistance or PT100, anti-condensation heating

CMH heavy cutting motor, high-power saw blade cutting motor, stone cutting motor

Custom Accessories:

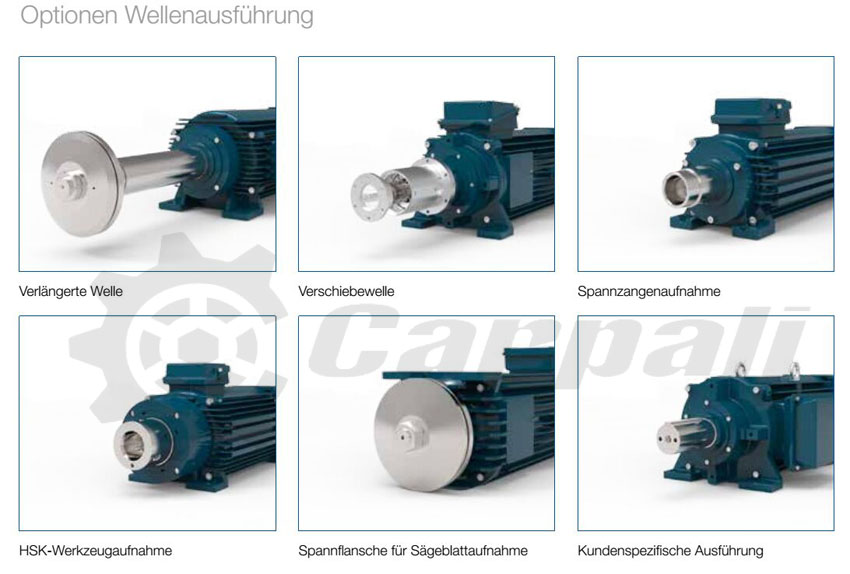

1. Manual or automatic lubrication, gapless or special high speed spindle bearings for special bearings with high radial and axial loads (such as milling cutters), hollow shafts, rock shafts and tools,

Vibration severity level: B, humidity and tropical

Housing made of ductile iron or steel, bearing shield and junction box, different lacquer quality, RAL color on customer choice

2. Component-based options for braking (manual release, wear monitoring), optical or magnetic speed sensors, backstop, clamping devices and tool changers. Specific application technical details,

Depending on the efficiency class IE 2 dimensions are special voltages, hollow shafts and rock shafts are built on the saw blade according to customer specifications and additional parts, with backlash-free double-spindle bearing drive ends, manual lubrication.

CMH heavy cutting motor, high-power saw blade cutting motor, stone cutting motor

Features:

The motor is AC induction motor in a particularly compact and compact design. The motor has the characteristics of high power density and high energy efficiency. By mounting multiple large saw blades directly on the motor shaft.

These motors enable efficient system applications around the world. Achieve higher levels of efficiency without the need for larger motor sizes. Motor for high efficiency saw blade cutting equipment．

Applications:

Stone cutting equipment, heavy machinery cutting equipment, ceramic cutting, precision metal cutting, large aluminum cutting motor, table saw motor, cutting granite, cutting marble motor, cement concrete cutting motor,

Large circular saw blade motor, cutting metal profiles, large composite sheet cutting motor.
